Underground Mining Electric LHD China LHD Loader

Name: Underground Mining Electric LHD China LHD Loader
Brand: LHD Loader
Price: 1000 USD

Place of Origin : China

Brand Name : LHD Loader

Certification : ISO

Model Number : LHD Loader

Type : Mini Loader

Moving Type : Wheel Loader

Dimension(Long * Breadth * High) : 6090*1300*2000mm

Rated Load : 7200KG

MOQ : 1 set

Price : USD1000

Packaging Details : in wooden box

Delivery Time : within 7 working days after payment

Payment Terms : T/T,Western Union

Supply Ability : 100 sets per month

Contact Now

Underground Mining Electric LHD China LHD Loader

Features:

1. Underground electric LHD adopt torque converter driving system, three-phase AC motor driving. Gear-box, torque converter, differential mechanism and drive axle are all imported international famous brand.

2. Special design and structure like small size, performing long lifespan, big shovel force, lower cost, convenient in operation and maintenance as well.

3. It has the characteristics of four-wheel drive, full-hydraulic steering, three-point articulated in front and rear car body.

4. Suitable for mining and road way drivage slag, the construction of the road and work place, material transportation and so on.

TECHNICAL PARAMETER:

Electric Motor	HM2	Max. Climbing Ability	15°
Hydraulic Pump	Import Variable Pump	Max .Discharge Height	1050 MM
Hydraulic Motor	Import Variable Motor	Min. Discharge Height	860 MM
Braking System	Combine the working brake, parking brake and emergency brake as a whole, so Simplified the braking system.	Min. Turning Radius	Inner: 2540 MM Outer:4260 MM
Bucket Capacity	1 M³	Rear Axle Swing Angle	±8°
Rated Loading Capacity	2000 KG	Dimensions (transport)	Length	6090 MM
Max. Shovel Force	48 KN		Width	1300 MM
Max. Traction	56 KN		Height	2000 MM
Running Speed	0-8 KM/H	Weight	7200 KG

Underground Mining Electric LHD China LHD Loader

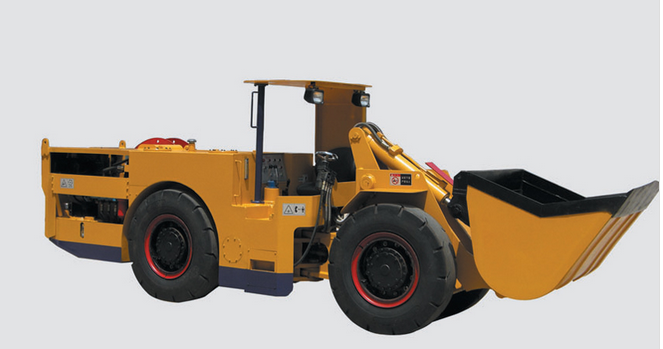

Underground Mining Electric LHD China LHD Loader Images
